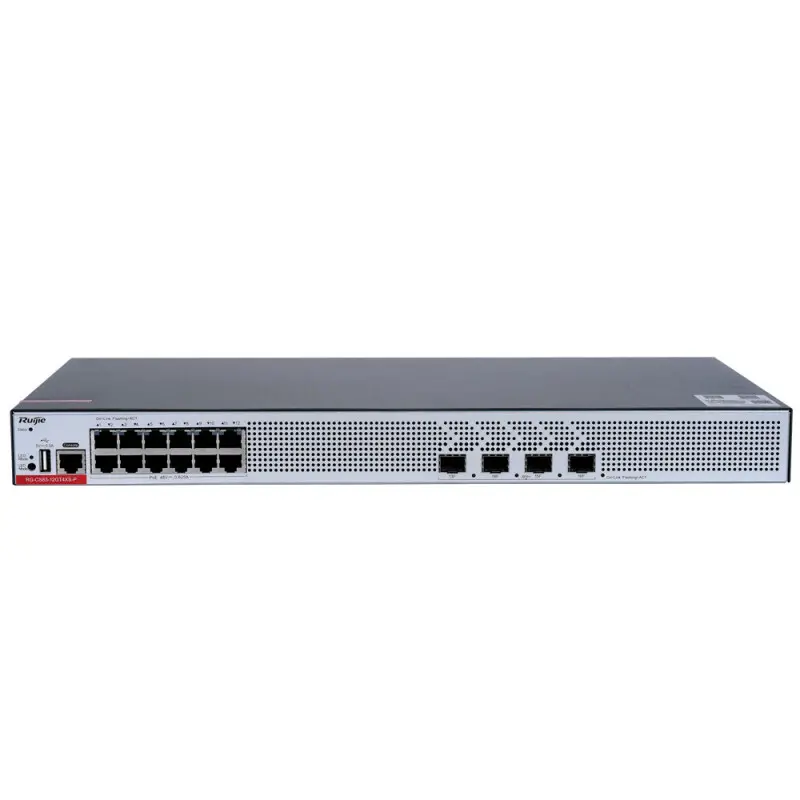

Ruijie RG-CS83-12GT4XS-P 8 PORT 10/100/1000 8 PORT POE/POE+ 4-PORT 1G/10G SFP+ 370W LAYER 3 YÖNETİLEBİLİR +CLOUD MANAGED RACK MOUNT SWI
Ürün Bilgileri

Ek Bilgiler
- • Ürün gönderimi Donanım Market tarafından yapılacaktır.
- • Kampanya kapsamında satışa sunulan stok adedi 20 ile sınırlıdır.
- • Aynı ürün farklı satıcılar tarafından sunulabilir. Satıcıların belirlediği fiyat, teslimat süresi, puanlama ve kargo koşulları değişiklik gösterebilir. Bu nedenle listeleme sırası stok ve kategori bilgilerine göre şekillendirilmektedir.
- • Ürün teslim alındıktan sonra 14 gün içerisinde ücretsiz iade hakkı bulunmaktadır. Ayrıntılar için iade koşullarını inceleyebilirsiniz.
- • Barkod: 6971693276192
Ürün Açıklaması
Highlight Features
- Provides multiple network management methods, achieving simple and easy network maintenance.
- Provides open and programmable RGOS modular operating system. Basic functions are incorporated into the main version, and c ustom functions are released in app mode, ensuring stability of the basic functions.
- Rectifies faults related to processes online in seconds, without interrupting network operation.
- Supports Python that allows applications across platforms.
- Upgrades and extends functions online to ensure nonstop services.
Specifications
| Port Specifications | RG-CS83-24GT4XS | RG-CS83-48GT4XS | RG-CS83-12GT4XS-P | RG-CS83-24GT4XS-P | RG-CS83-48GT4XS-P | |||||
| Fixed service ports | 24 x 10/100/1000BASE-T ports | 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports | 4 x 1GE/10GE SFP+ ports | 12 x 10/100/1000BASE-T ports, supporting PoE/PoE+ | 4 x 1GE/10GE SFP+ ports | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ | 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ | 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port | |||||||||
| USB | 1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested) |
| System Specifications | RG-CS83-24GT4XS | RG-CS83-48GT4XS | RG-CS83-12GT4XS-P | RG-CS83-24GT4XS-P | RG-CS83-48GT4XS-P | |||||
| Packet forwarding rate | 96 Mpps | 132 Mpps | 78 Mpps | 96 Mpps | 132 Mpps | |||||
| Switching capacity | 128 Gbps | 176 Gbps | 104 Gbps | 128 Gbps | 176 Gbps | |||||
| CPU | Dual-core CPU, each core with the clock speed of 1.0 GHz | |||||||||
| BootROM | 16 MB (storing boot software for 1+1 boot redundancy) | |||||||||
| Flash memory | 512 MB (storing boot software for 1+1 boot redundancy) | |||||||||
| Memory | 1 GB | |||||||||
| Switch buffer | 4 MB | |||||||||
| MAC address table size | 16,000 | |||||||||
| ARP table size | 4,000 | |||||||||
| Number of IPv4 unicast routes | 6,000 | |||||||||
| Number of IPv4 multicast routes | 1,000 | |||||||||
| Number of IPv6 unicast routes | 2,000 | |||||||||
| Number of IPv6 multicast routes | 750 | |||||||||
| Number of ACEs | Ingress: 1,750 | Egress: 800 | ||||||||
| Number of VSU members | 4 | |||||||||
| Dimensions and Weight | RG-CS83-24GT4XS | RG-CS83-48GT4XS | RG-CS83-12GT4XS-P | RG-CS83-24GT4XS-P | RG-CS83-48GT4XS-P | |||||
| Unit dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) | |||||||||
| Shipping dimensions (W x D x H) | 540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.) | |||||||||
| Rack height | 1 RU | |||||||||
| Unit weight | 3.1 kg (6.83 lbs) | 3.25 kg (7.17 lbs) | 3.3 kg (7.28 lbs) | 3.4 kg (7.50 lbs) | 4.0 kg (8.82 lbs) | |||||
| Shipping weight | 4.10 kg | (9.04 lbs) | 4.10 kg | (9.04 lbs) | 4.18 kg | (9.22 lbs) | 4.25 kg | (9.37 lbs) | 4.90 kg | (10.80 lbs) |
| Power supply and Consumption | RG-CS83-24GT4XS | RG-CS83-48GT4XS | ||||||||
| Power supply | 1 x fixed power supply | 1 x fixed power supply | ||||||||
| Power input | AC input | ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz | ● Maximum input current: 0.6 A | AC input | ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz | ● Maximum input current: 1.5 A | ||
| Maximum output power | Built-in power supply: 25 W | Built-in power supply: 40 W | ||||||||
| Maximum power consumption | 25 W | 40 W | ||||||||
| Energy saving | Supported | Supported |
| Power supply and Consumption | RG-CS83-12GT4XS-P | RG-CS83-24GT4XS-P | RG-CS83-48GT4XS-P | |||||||||
| Power supply | 1 x fixed power supply | 1 x fixed power supply | 1 x fixed power supply | |||||||||
| Power input | AC input | ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz | ● Maximum input current: 6 A | AC input | ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz | ● Maximum input current: 6 A | AC input | ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz | ● Maximum input current: 6 A |
| Maximum output power | Built-in power supply: 409 W | Built-in power supply: 409 W | Built-in power supply: 460 W | |||||||||
| Maximum power consumption | 35 W (non-PoE) | 405 W (PoE full load) | 35 W (non-PoE) | 405 W (PoE full load) | 52 W (non-PoE) | 460 W (PoE full load) | ||||||
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply | |||||||||
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) | Mode A (1-2, 3-6 pairs) | Mode A (1-2, 3-6 pairs) | |||||||||
| PoE output power | Each PoE port provides up to 30 W of power | The maximum power is 370 W | Each PoE port provides up to 30 W of power | The maximum power is 370 W | Each PoE port provides up to 30 W of power | The maximum power is 405 W | ||||||
| Energy saving | Supported | Supported | Supported |
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
| Environment and Reliability | RG-CS83-24GT4XS | RG-CS83-48GT4XS | RG-CS83-12GT4XS-P | RG-CS83-24GT4XS-P | RG-CS83-48GT4XS-P | ||||||||
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) | Storage temperature: –40°C to +70°C (–40°F to +158°F) | |||||||||||
| Humidity | Operating humidity: 10% to 90% RH (non-condensing) | Storage humidity: 5% to 95% RH (non-condensing) | |||||||||||
| Altitude | Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) | Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) | |||||||||||
| Mean time between failure (MTBF) | 207,962 hours (about 23 years) | 208,926 hours (about 23 years) | 211,466 hours (about 24 years) | 209,714 hours (about 23 years) | 200,253 hours (about 22 years) | ||||||||
| Fan | No fan | 1 x fixed fan module | 1 x fixed fan module | 1 x fixed fan module | 1 x fixed fan module | ||||||||
| Heat dissipation | Fanless design, natural heat dissipation | Front-to-right and left-to-right airflow | |||||||||||
| Acoustic noise | Fanless, quiet, < 20 dB | 27℃ (80.6°F): 32 dB | 27℃ (80.6°F): 35 dB | 27℃ (80.6°F): 32 dB | 27℃ (80.6°F): 35 dB | ||||||||
| Cable hot swapping | Cable hot swapping for all ports | ||||||||||||
| Fan monitoring | Fanless design | PID-based multi-level speed adjustment | Fan speed control (manual configuration not supported) | Fan failure alarming | PID-based multi-level speed adjustment | Fan speed control (manual configuration not supported) | Fan failure alarming | PID-based multi-level speed adjustment | Fan speed control (manual configuration not supported) | Fan failure alarming | PID-based multi-level speed adjustment | Fan speed control (manual configuration not supported) | Fan failure alarming |
| Temperature monitoring | Supported | Supported | Supported | Supported | Supported | ||||||||
| ESD | ESD contact/air discharge: 6 kV/8 kV | ESD susceptibility contact/air discharge: 8 kV/15 kV | |||||||||||
| Surge protection | Power port: common mode 6 kV, differential mode 6 kV | Communication port: 10 kV | Power port: common mode 6 kV, differential mode 6 kV | Communication port: 10 kV | Power port: common mode 6 kV, differential mode 8 kV | Communication port: 10 kV | Power port: common mode 6 kV, differential mode 8 kV | Communication port: 10 kV | Power port: common mode 6 kV, differential mode 8 kV | Communication port: 10 kV | |||
| Conformal coating | Conformal coating supported (key components only) |
| Certifications and Regulatory Compliance | RG-CS83 Series | ||
| Safety regulation | IEC 62368-1 | ||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, | EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, | EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| Communication standard | IEEE 802.3-2005 Ethernet standard | IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication | |
| RoHS | Supported |
Software Specifications
| RG-CS83 Series | |||||||
| Feature | Description | ||||||
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) | ||||||
| 802.3az EEE | |||||||
| IEEE 802.1Q (4K VLANs) | |||||||
| Voice VLAN | |||||||
| Super-VLAN and private VLAN | |||||||
| MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN | |||||||
| GVRP | |||||||
| Basic QinQ | Selective QinQ | ||||||
| STP, RSTP, and MSTP | |||||||
| ERPS (G.8032) | |||||||
| LLDP/LLDP-MED | |||||||
| IP service | ARP | ||||||
| DHCP client, DHCP relay, and DHCP server | |||||||
| DHCP snooping | |||||||
| DNS | |||||||
| DHCPv6 client, DHCPv6 relay, and DHCPv6 server | |||||||
| DHCPv6 snooping | |||||||
| Neighbor Discovery (ND) and ND snooping | |||||||
| IP routing | Static routing | ||||||
| RIP and RIPng | |||||||
| OSPFv2 and OSPFv3 | |||||||
| IPv4 and IPv6 VRF | |||||||
| IPv4 and IPv6 PBR | |||||||
| Multicast | IGMP v1/v2/v3, and IGMP proxy | ||||||
| IGMP v1/v2 snooping | |||||||
| PIM-DM, PIM-SM, and PIM-SSM | |||||||
| MSDP | |||||||
| MLD v1/v2 | |||||||
| MLD snooping v1/v2 | |||||||
| PIM-SMv6 and PIM-SSM v6 | |||||||
| ACL and QoS | Standard IP ACLs | Extended IP ACLs | Extended MAC ACLs | Time-based ACLs | Expert-level ACLs | ACL80 | IPv6 ACL |
| ACL redirection | |||||||
| Traffic rate limiting on an interface | |||||||
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |||||||
| Congestion avoidance: tail drop | |||||||
| 802.1p/DSCP/ToS traffic classification | Eight priority queues per interface | ||||||
| Security | Multiple AAA modes | ||||||
| RADIUS and TACAS+ | |||||||
| Interface-based and MAC address-based 802.1x authentication | |||||||
| Web authentication | |||||||
| HTTPS | |||||||
| SSHv1 and SSHv2 | |||||||
| Global IP-MAC binding | |||||||
| Port isolation and port security | |||||||
| IP source guard | |||||||
| SAVI | |||||||
| CPP and NFPP | |||||||
| Reliability | REUP, RLDP, DLDP | ||||||
| IPv4 VRRP v2/v3 and IPv6 VRRP | |||||||
| BFD | |||||||
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |||||||
| Dual-Boot Redundancy | |||||||
| Fan speed adjustment | Fan fault alarm | ||||||
| Device virtualization | Virtual Switching Unit (VSU) | ||||||
| NMS and maintenance | SPAN, RSPAN | ||||||
| sFlow | |||||||
| NTP and SNTP | |||||||
| FTP and TFTP | |||||||
| SNMP v1/v2/v3 | |||||||
| RMON (1, 2, 3, 9) | |||||||
| NETCONF | |||||||
| CWMP (TR-069) | |||||||
| gRPC | |||||||
| Cloud and SON | |||||||
| PoE | RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: | IEEE 802.3af and 802.3at | Warm start | Interface priority |
